The following configuration does work, but not as we expect.

Test scenario

• Fronwheel motor with planetary gear 250W, 36V
• Baserunner
• CA 3.1
• PAS sensor, both PAS 24pol and Sempu 122 torque
• Digital Aux Input

Work = meaning the motor runs when turning the crank and its possible to change PAS level

Not work

• Setting Pas (Pwr) – motor do not start
• Not understand torque setting when to use, Sempu ?
• No visible change in power level when changing PAS level on switch.

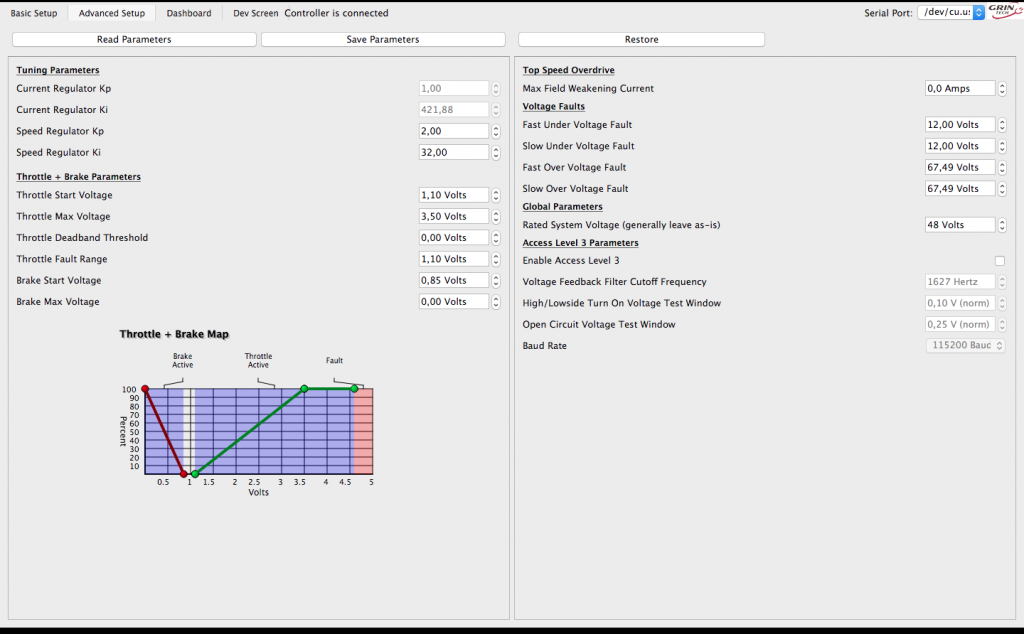

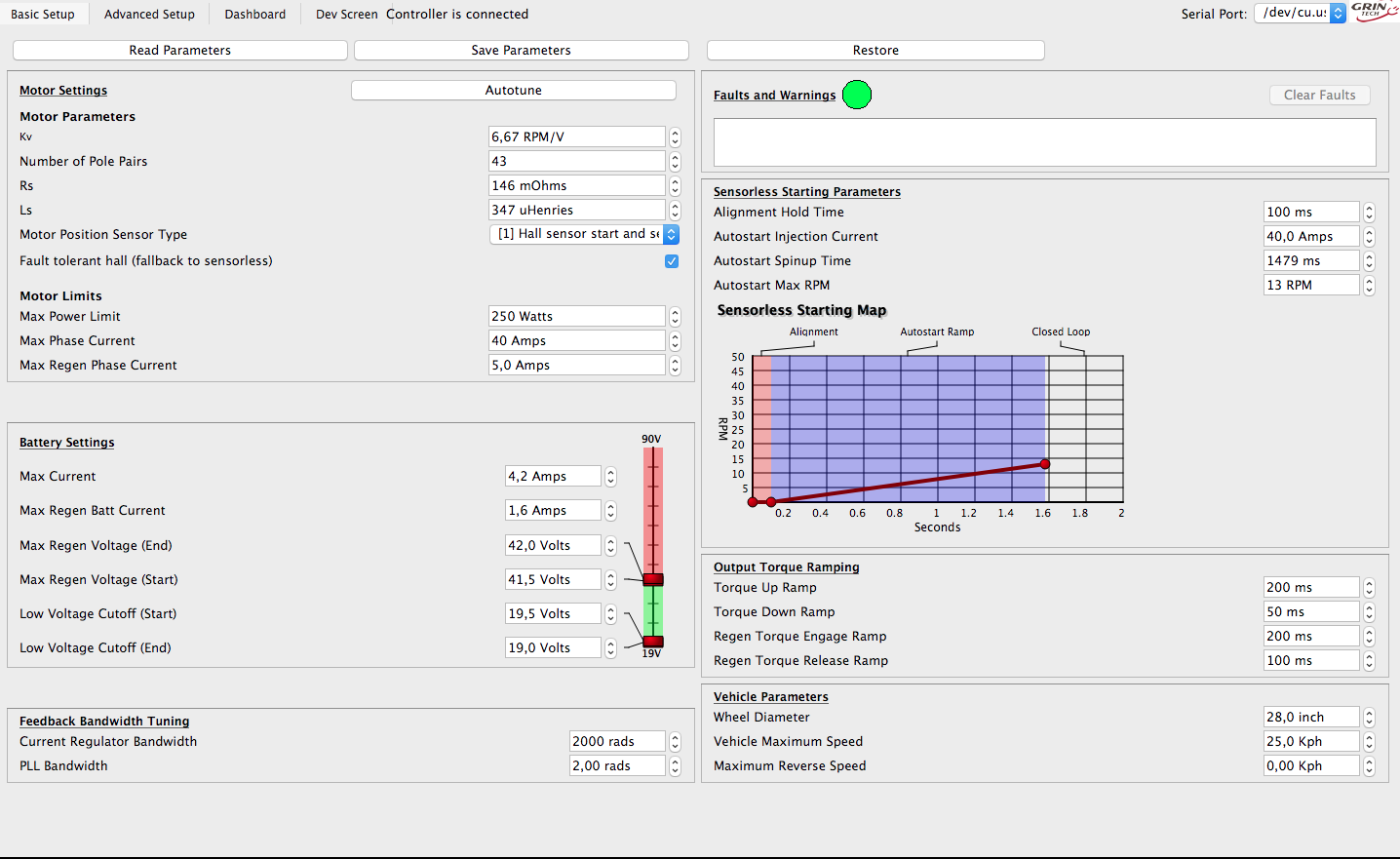

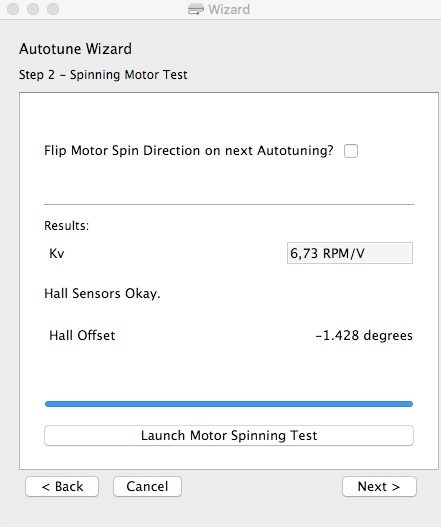

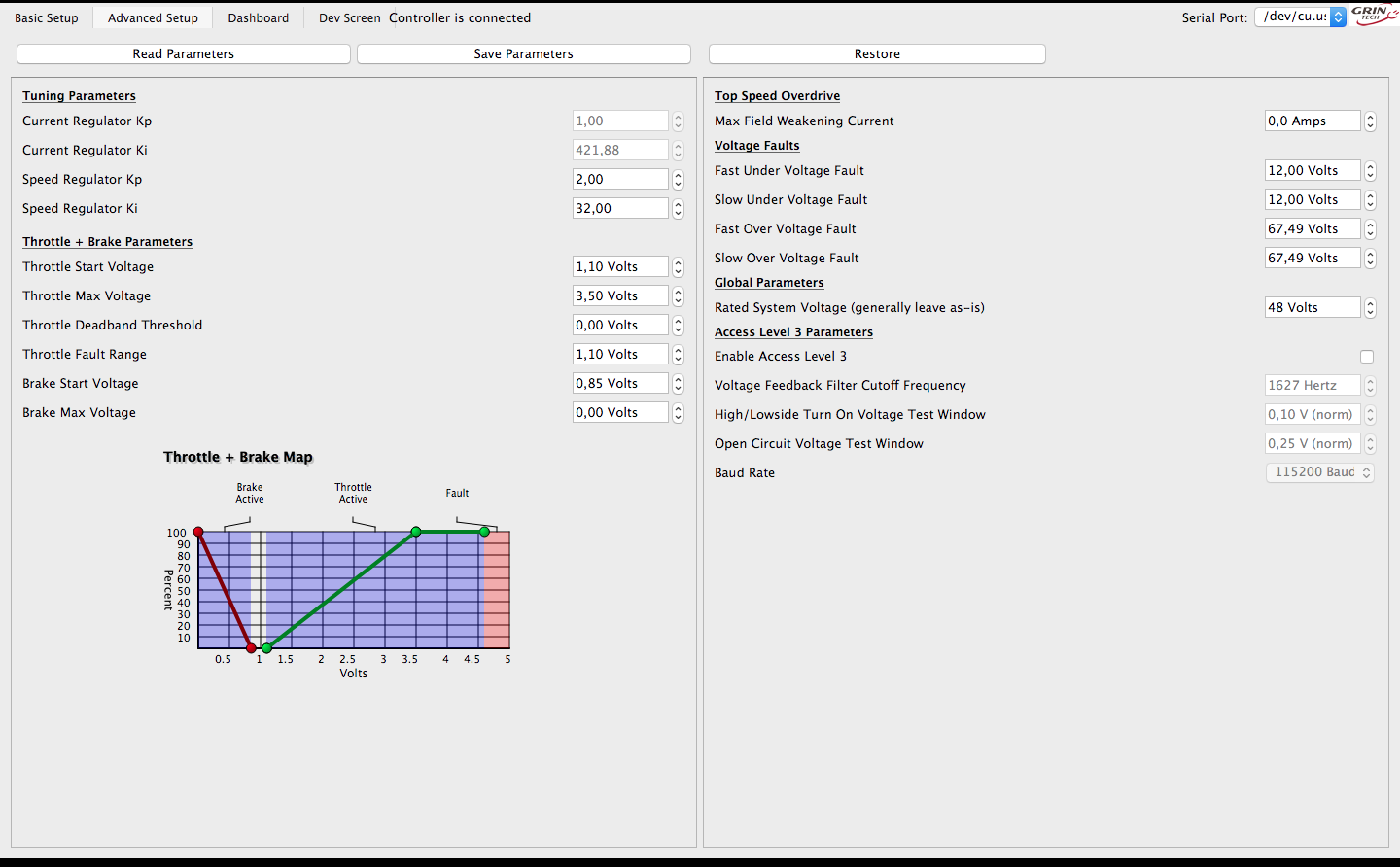

Config screen Baserunner

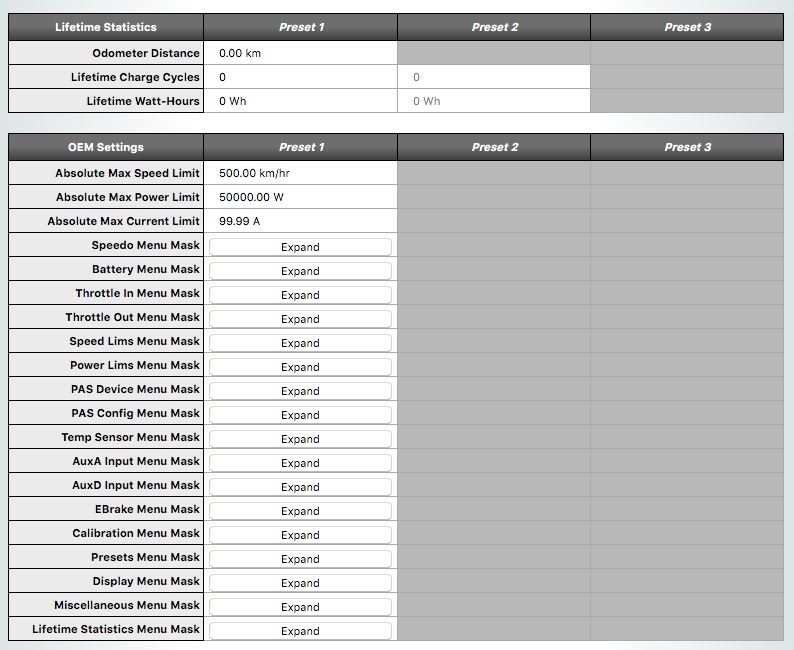

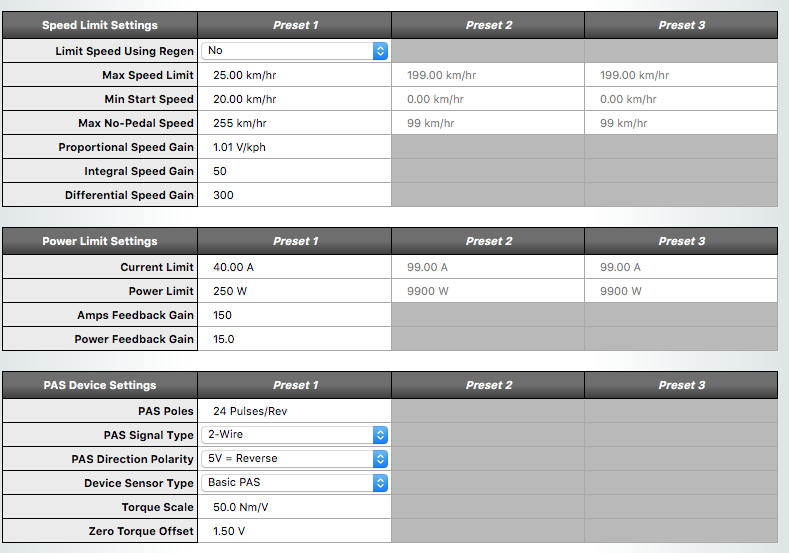

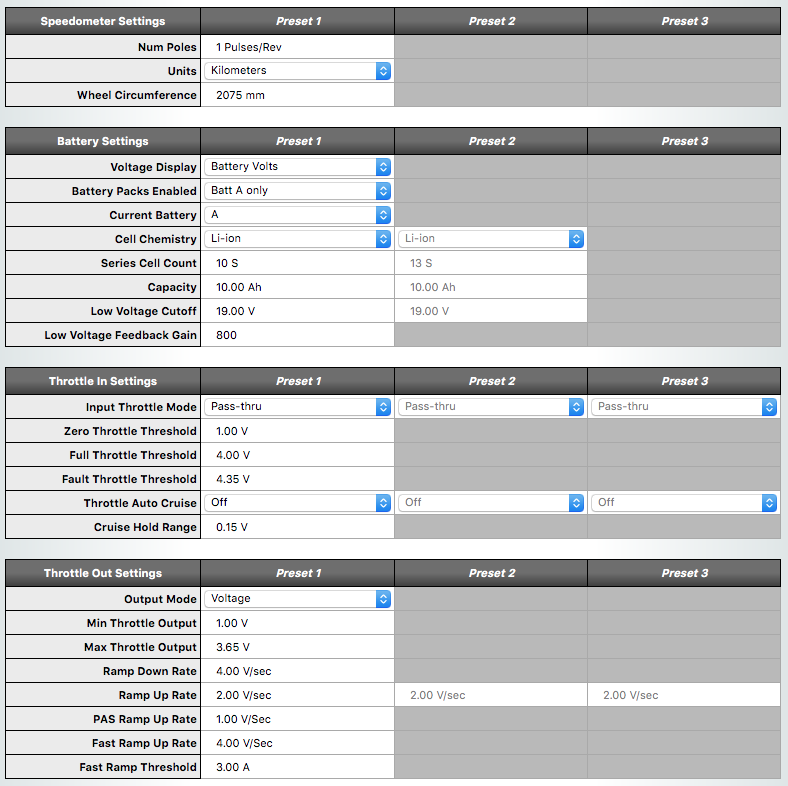

Config screen CA 3.1
